Image Transformation API

Image representations are generated on-the-fly by applying the necessary transformations. There is no need to define the formats in advance and pre-generate images.

To reduce the load on the Image Service we highly recommend using a CDN - provided by Axinom or your own.

The Image Transformation API provides a single endpoint /transform accessible with an HTTP GET verb.

The request shall be formatted as seen below:

https://image.service.eu.axinom.net/transform/$environment-specific-identifier/$filename?parameter=value

The part https://image.service.eu.axinom.net/transform/$environment-specific-identifier/$filename is called the "Transformation Base URL". It can be found on the Image Detail station in the Management System or acquired using the GraphQL Admin API.

Transformation Base URL on the Image Detail station

• environment-specific-identifier contains encoded information about the tenant and environment
• filename is a unique name for the file generated by the system. It is not the original filename for the purposes of security and uniqueness.

Supported URL parameters are described in the table below:

Parameter	Comment	Example	Default
w	Desired width in px	400	Width of the original image
h	Desired height in px	300	Width of the original image
f	Desired image format	'jpg', 'png', or 'webp'	jpg
focalX, focalY	Manual overwrite for the focal point. It is a decimal between 0 and 1, where 0 is the left/top and 1 is the right/bottom. The middle of an image is (0.5,0.5)	0.2	Focal point configured in the management system

Example:

https://image.service.eu.axinom.net/transform/16b0tks5rqq2qoobqvo5fxhfj-8j0cretxi7muq1cgjvp4fwurw/WXe4hVRanMNaAPsXtmMX6E.jpg?w=400&h=100&focalX=0.2&focalY=0.9&f=webp

It’s enough to specify either the width or the height of the image; the other dimension will be calculated based on the original aspect ratio.

Consider that if asked for the dimensions beyond the size of the original, the service will deliver the original size instead.

Transformation logic described

Let’s assume the following:

• we have an image with the dimensions W x H
• we want to transform it to the dimensions w x h (the target)
• the focal point is set to (focalX, focalY).

The transformation logic is as follows:

1. Calculate the aspect ratios of the original image (R=W/H) and the target image (r=w/h).
2. Find the largest rectangle (the overlay) with the aspect ratio r that still fits into the original image. If r>R, the rectangle will be as wide as the original image and as high as the original image divided by r. If r<R, the rectangle will be as high as the original image and as wide as the original image multiplied by r.
3. Place the overlay over the original image so that the focal point is inside of it and is located most closely to the center of the overlay.
4. Crop the original image to the size and placement of the overlay. This may crop away areas on one side of the overlay or on both sides of the overlay.
5. Scale the cropped image to the target dimensions (w x h). This preserves the aspect ratio. In case the cropped image is smaller than the target dimensions, take the cropped image without scaling.

Example:

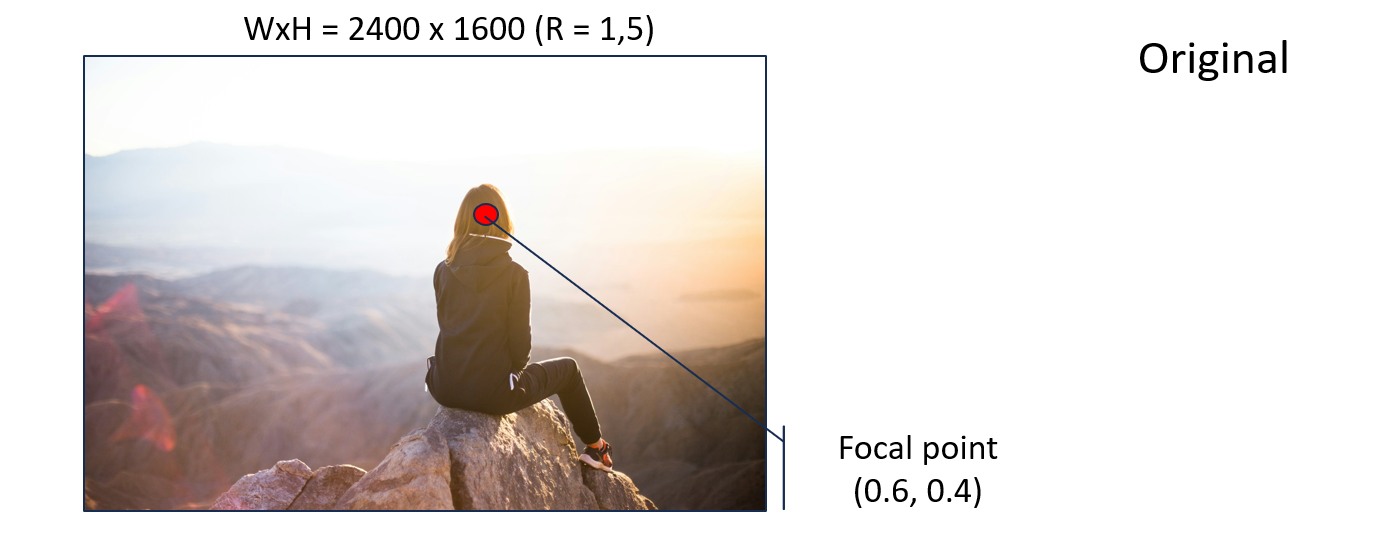

Original image dimensions: 2400x1600 (R=1.50)

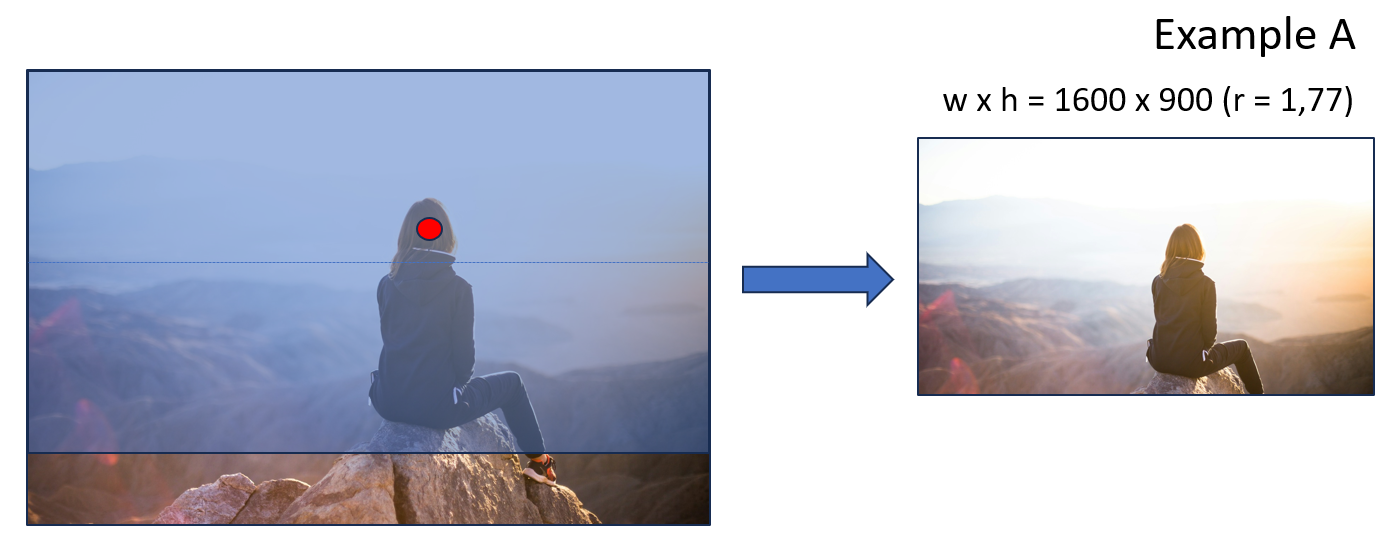

Example A: target dimensions 1600x900 (R=1.77)

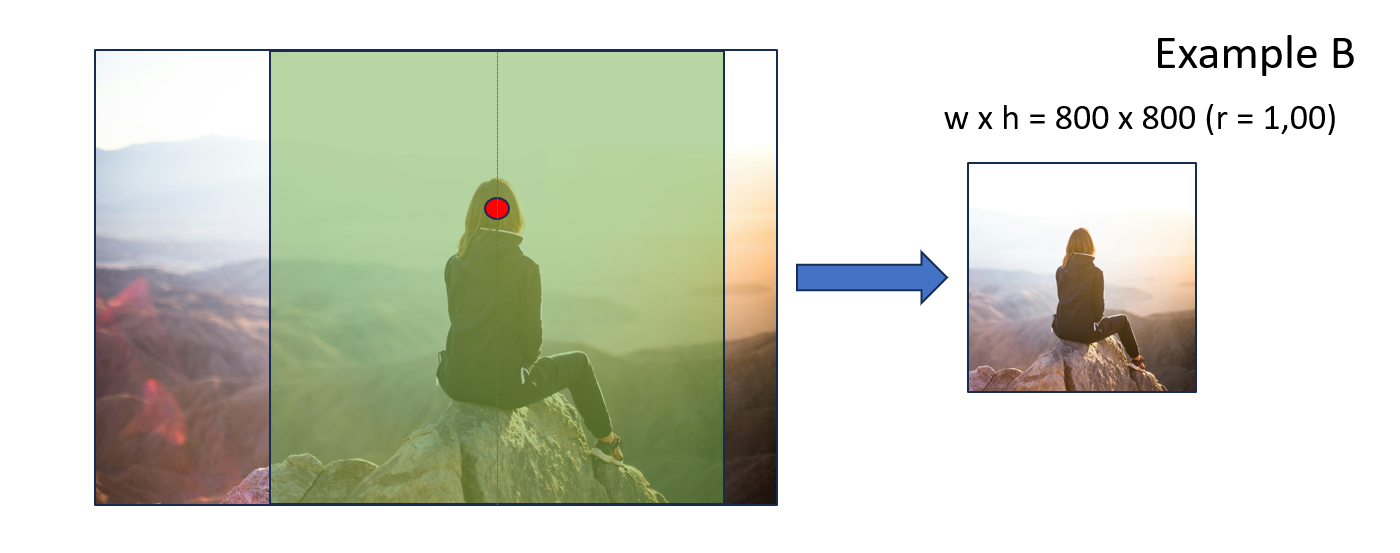

Example B: target dimensions 800x800 (R=1.00)

GraphQL Admin API

This API provides read- and management access to all data inside the Image Service.

Endpoint: https://image.service.eu.axinom.net/graphiql

To use the API, you need a JWT from the Identity Service (see How to authenticate a service account).

GraphQL mutation uploadImage can be used to upload a new image.

Parameters:

• Image File
• Image Type.

tip

Altair endpoint - https://image.service.eu.axinom.net/altair/ - can be more convenient interface to upload files via GraphQL.

Messaging

Image Service supports a number of commands and events.

See also: Messaging.

Webhook

Image Service supports a webhook called every time when an image is uploaded. For example, such a webhook can verify if the image type or size matches the business rules of the application.

If a webhook is configured, the Image Service sends a POST request to the specified URL after any image is uploaded with the following payload:

Image upload webhook request payload

Property	Description	Data Type
image_name	Original Image Name.	string
size	Size of the image in bytes.	number
width	Number of pixels wide.	number
height	Number of pixels high.	number
format	Name of the decoder used to compress image data. e.g. jpeg, png, webp, gif, svg	string
has_alpha	Boolean indicating the presence of an alpha transparency channel.	boolean
image_type	Type of Image as defined in the Image Service. e.g. MOVIE_COVER	string

The webhook can run any validation based on the payload data and return an array of errors:

Image upload webhook response payload

{
    errors: {
        message: string;
        code: string;
    }[];
}

If the array is empty, the image is accepted. If the array is not empty, the image is rejected and the API returns specified errors as the "reason".

See also: Secure implementation of webhooks in Mosaic.

Server-side Download

There is a command initiating image download from a configured image storage.

Parameters:

• Image relative path in the image storage (e.g. "/images/covers/avatar.jpg")
• Image type that defines which image formats to create (e.g. "movie_cover").
• Optionally, a list of tags to add to the image
• Optionally, a correlation ID.

Ingest

Ingest feature implemented in the Media Service allows to create and link an image (cover) for each ingested entity downloading them from a pre-configured Image Storage. Ingest uses the interface described above under Server-side Download.
